R1520
R1520

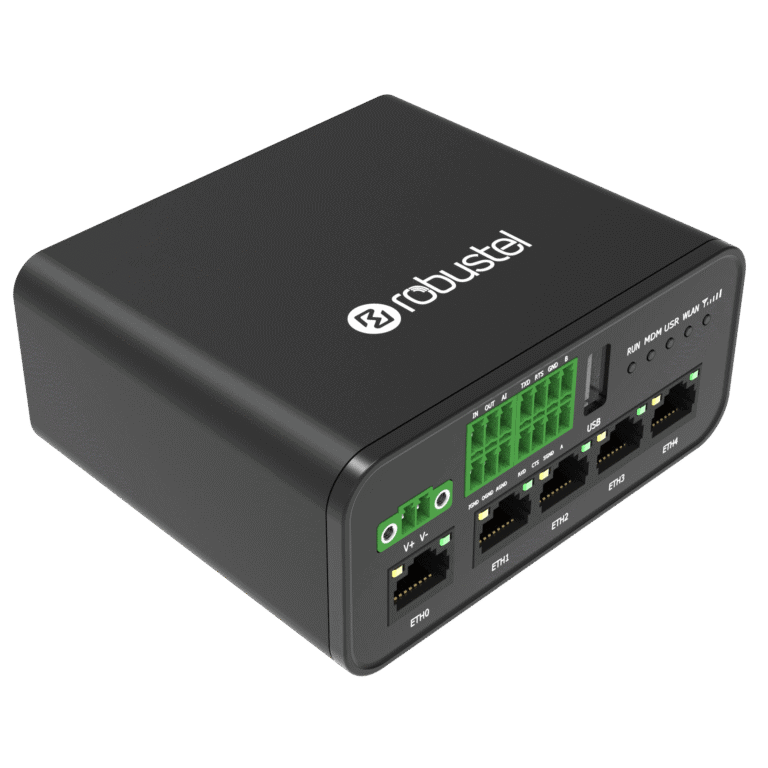

Industrial Dual-SIM 4G/LTE Router with 5 x LAN Ports, GNSS, Serial, DI/DO, Analog Input and a Globally Certified SKU.
The Robustel R1520 is an industrial LTE router for multi-site IoT connectivity, combining five Fast-Ethernet ports (configurable 1×WAN + 4×LAN), dual-SIM resilience, and Wi-Fi/Ethernet WAN options in a compact form factor. Security and remote operations are built in: IPsec, OpenVPN, GRE, WireGuard and DMVPN, plus RCMS for fleet monitoring, configuration and updates, and RobustVPN for fixed-IP access on any SIM.
For projects that span regions, the R1520 Global SKU consolidates wide LTE band coverage and a deep set of certifications (e.g., FCC/PTCRB, CE, RCM, ICASA, TDRA and more) to simplify procurement and deployment across markets. The series also includes Standard (S) and Vehicle (V, E-mark + GNSS) variants to match site requirements.
Optional PoE-PD on ETH0 simplifies installation; DI/DO, analog input, and RS-232/RS-485 support common integration needs. The result: reliable, secure connectivity with a single platform that scales from local pilots to global rollouts.
Features
- Support DI + DO + AI
- RobustOS + SDK + App
- Support continuous 2G/3G/4G cellular network connections
- The feature Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
- WAN – Static/PPPoE/DHCP Client
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Management and maintenance via Web/CLI/SMS/RCMS Cloud
- Auto reboot via SMS/Timing
- Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The Robustel industrial dual sim card VPN Router (R1520) is a rugged cellular router can support 2G, 3G, and 4G LTE Cat 4 networks. It provides high-speed wireless network bandwidth for devices through wireless connections to ensure stable wireless network connections.
R1520 is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.
Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
|
R1520-4L Global PoE-PD Global |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 4G LTE TDD: B38/B39/B40/B41 3G: B1/B2/B4/B5/B6/B8/B19 2G: 850/900/1800/1900 MHz |
E-Mark, RCM, CE, UKCA, FCC, IC, PTCRB, AT&T, Verizon, ICASA, TDRA, NTC, IMDA, NBTC, SIRIM, MTC, EAC, ANATEL, Rogers, CRC, SUBTEL, ENACOM, URSEC, KCC, NOM, POSTEL, ARCOTEL |
A005600705 |
1 × R1520 Global Router (B Code: B056701) |
|
R1520-4L Global PoE-PD Global |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 4G LTE TDD: B38/B39/B40/B41 3G: B1/B2/B4/B5/B6/B8/B19 2G: 850/900/1800/1900 MHz |
E-Mark, RCM, CE, UKCA, FCC, IC, PTCRB, AT&T, Verizon, ICASA, TDRA, NTC, IMDA, NBTC, SIRIM, MTC, EAC, ANATEL, Rogers, CRC, SUBTEL, ENACOM, URSEC, KCC, NOM, POSTEL, ARCOTEL |
A005600706 |
1 × R1520 Global Router (B Code: B056701) 1 × DIN Rail Mounting Kit 2 × Cellular Antenna 1 × Wi-Fi Antenna 1 × Power Adapter |
|
R1520-4L Global Global |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 4G LTE TDD: B38/B39/B40/B41 3G: B1/B2/B4/B5/B6/B8/B19 2G: 850/900/1800/1900 MHz |
E-Mark, RCM, CE, UKCA, FCC, IC, PTCRB, AT&T, Verizon, ICASA, TDRA, NTC, IMDA, NBTC, SIRIM, MTC, EAC, ANATEL, Rogers, CRC, SUBTEL, ENACOM, URSEC, KCC, NOM, POSTEL, ARCOTEL |
A005600707 |
1 × R1520 Global Router (B Code: B056711) |
|
R1520-4L Global Global |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 4G LTE TDD: B38/B39/B40/B41 3G: B1/B2/B4/B5/B6/B8/B19 2G: 850/900/1800/1900 MHz |
E-Mark, RCM, CE, UKCA, FCC, IC, PTCRB, AT&T, Verizon, ICASA, TDRA, NTC, IMDA, NBTC, SIRIM, MTC, EAC, ANATEL, Rogers, CRC, SUBTEL, ENACOM, URSEC, KCC, NOM, POSTEL, ARCOTEL |
A005600708 |
1 × R1520 Global Router (B Code: B056711) 1 × DIN Rail Mounting Kit 2 × Cellular Antenna 1 × Wi-Fi Antenna 1 × Power Adapter |

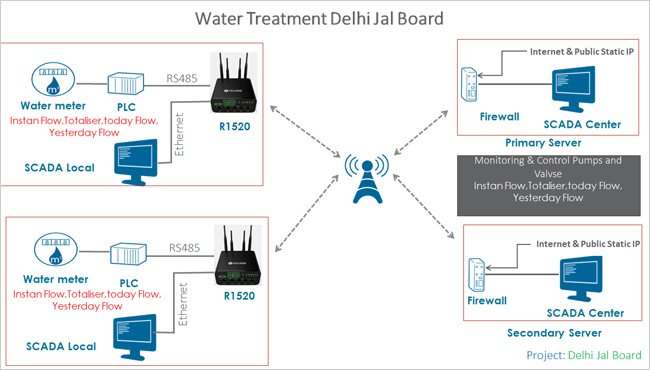

Application
Specification
System Architecture
| Operating System | RobustOS |
| CPU | MIPS, 650 MHz |
| RAM | 128MB |
| Flash | 16MB |
Cellular
| Supported Technologies | 4G/LTE, 3G, 2G |

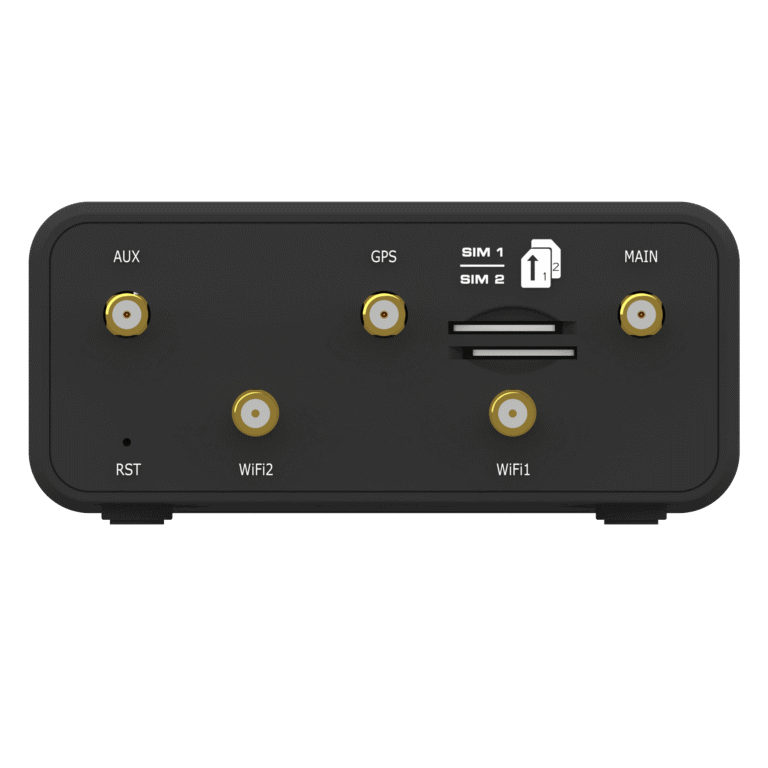

| Antennas | 2 (MAIN + DIV) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet

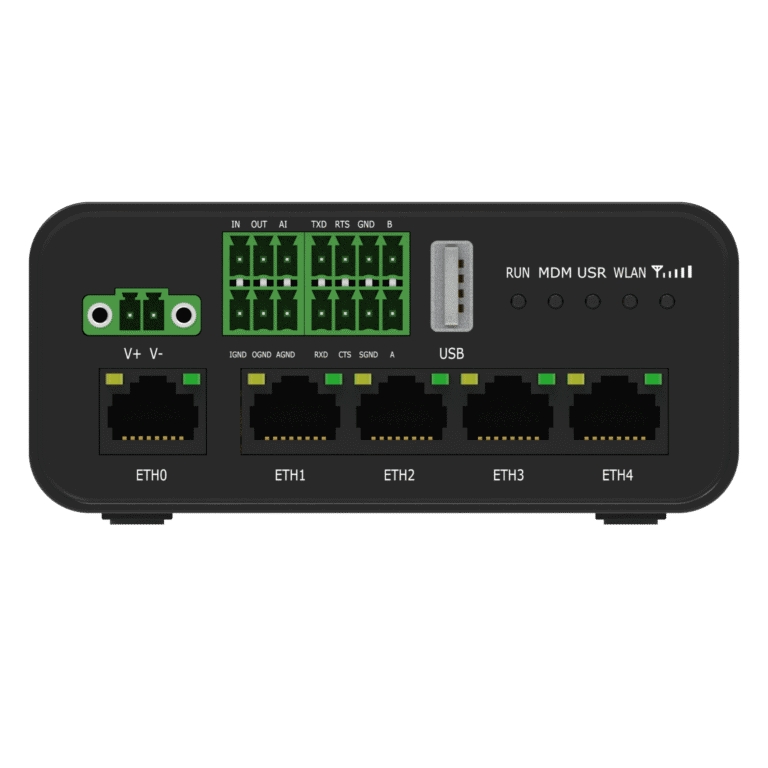

| Ethernet Ports | 5 x 10/100 Mbps, 5 x LAN by default, can be configured as 1 x WAN + 4 x LAN |
| Magnet Isolation Protection | 1.5 KV |
PoE In (Optional)
| PoE Ports | WAN1 |
| PoE Standards | 802.3af & 802.3at PD |
Serial Port
| Serial Ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 4-pin 3.5 mm female socket |
| Baud Rate | 300 bps – 115200 bps |
| Signal Definition | RS-232: RXD, TXD, SGND, RTS, CTS RS-485: Data+ (A), Data- (B), Ground (GND) |
Digital Input/Output
| DI/DO Ports | 1 x DI + 1 x DO (wet contact) |
| Connector | 2 x 3-pin 3.5 mm female socket |
| Isolation | 3 KV |
| Absolute Maximum VDC | +30 V DC (DI), +30 V DC (DO) |
| Absolute Maximum ADC | 10 mA (DO) |
| Signal Definition | DI+, DI-, DO+, DO- |
Analog Input
| Analog Ports | 1 x AI (can be configured as voltage type or current type) |
| Connector | 2 x 3-pin 3.5 mm female socket |
| Voltage Input Range | 0 ~ 24 V DC |
| Current Input Range | 4 ~ 20 mA (current-type input requires external resistance, and finally measured by voltage) |
| Signal Definition | AI, AGND |
Wi-Fi
| Wi-Fi Antennas | 2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector | RP-SMA-K |
| Standards | 802.11 b/g/n, supporting AP and Client modes |
| Frequency Bands | 2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
| Security | WEP, WPA, WPA2, WPA3 |
| Encryption | 64/128 AES, TKIP |
GNSS/GPS (Optional)
| GNSS Antennas | 1 |
| Connector | SMA-K with 50 ohms impedance |
| GNSS Technology | GPS/QZSS/GOLNASS/Galileo/BeiDou |
| Tracking sensitivity | GNSS: greater than -148 dBm |
| Horizontal position accuracy | GNSS: 2.5 m |
Other Interfaces
| Reset Button | 1 × RST |
| LED Indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x WLAN, 1 x RSSI |
| Watchdog | Built-in |
| RTC | External RTC clock for accurate timekeeping Backup energy storage capacitor provides up to 2 days of maintenance |
| USB | 1 x 480 Mbps High-speed USB 2.0 port (Type A, 5 V, 500 mA) |
Power Supply & Consumption
| PSU Connector | 2-pin 3.5mm female socket with lock |
| Input Voltage |
12/24 V DC, 9 ~ 36 V DC
PoE 40 ~ 57 V DC Reverse polarity protection, surge protection |
| Power Consumption | Idle: 3 W@12 V Max: 11 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Plastic, 250g |
| Dimensions | 46 x 90 x 105 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -25 – +70 °C |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, WireGuard |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++ |
| Flash available for SDK | 4MB |
| RAM available for SDK | 64MB |
Regulatory and Type Approvals
| Environmental | RRoHS 2.0, WEEE |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 EN 61000-4-11 (Dips) Level 2 |
