R1510
R1510

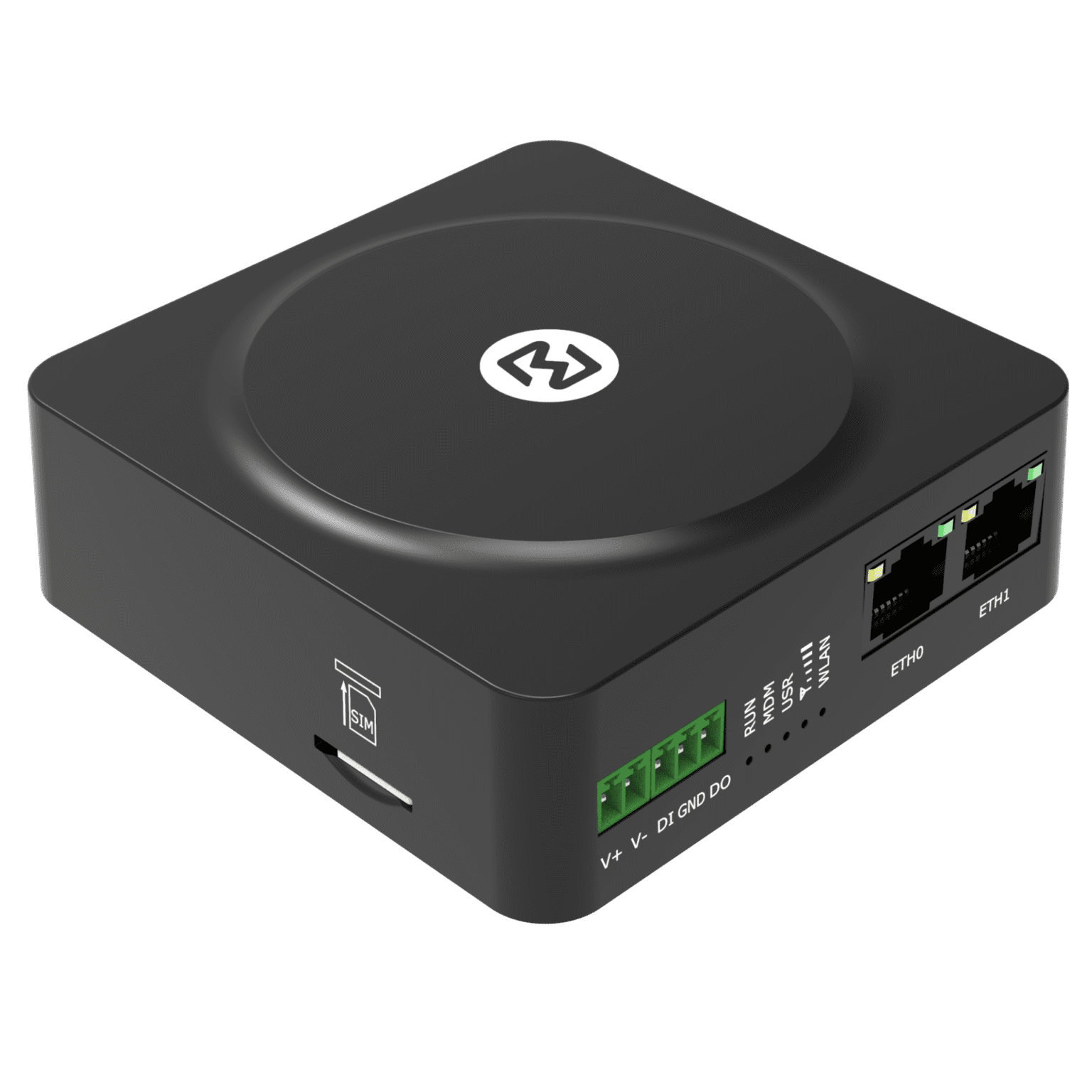

Compact Industrial 4G/LTE Router with 2 x LAN Ports
The Robustel R1510 is a compact industrial LTE Cat-4 router designed to provide reliable IP connectivity for space-constrained IoT deployments. Dual Ethernet (LAN + WAN) and optional 2.4 GHz Wi-Fi give flexible backhaul choices, while automatic WAN failover helps maintain service continuity when a primary link drops.
Built on RobustOS, the R1510 supports familiar networking features with a clean web UI and a C/C++ SDK for application-specific extensions without changing your upstream systems.
Manage fleets at scale with RCMS for monitoring, configuration, and over-the-air updates. For sites that need a public, routable address, RobustVPN uses OpenVPN to present a fixed IP on any SIM, simplifying secure remote access and central administration.
A small footprint and wide DC input suit cabinets, kiosks, ticketing and signage enclosures where dependable connectivity, not extra hardware, is the priority.
Features
- Support continuous 2G/3G/4G cellular network connections
- The feature Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
- WAN – Static/PPPoE/DHCP Client
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Management and maintenance via Web/CLI/SMS/RCMS Cloud
- Auto reboot via SMS/Timing
- Robust industrial design (9 to 26V DC, desktop or wall mounting or DIN rail mounting)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The Robustel Industrial Cellular VPN Router (R1510) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.
R1510 is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.
Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
| R1510-4L EMEA + SE Asia |
4G LTE FDD: B1/3/7/8/20/28A 3G: B1/8 2G: B3/8 |
CE, ICASA, TDRA, UKCA, CB, E-Mark, SIRIM, NTC* |
A004800711 | 1 × R1510 Router (B Code: B048701) |
| R1510-4L EMEA + SE Asia |
4G LTE FDD: B1/3/7/8/20/28A 3G: B1/8 2G: B3/8 |
CE, ICASA, TDRA, UKCA, CB, E-Mark, SIRIM, NTC* |
A004800712 |
1 × R1510 Router (B Code: B048701) 1 × DIN Rail Mounting Kit 1 × Cellular Antenna 1 × Wi-Fi Antenna 1 × Power Adapter |
| R1510-4L ANZ + LATAM |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 4G LTE TDD: B40 3G: B1/B2/B5/B8 2G: B2/B3/B5/B8 |
CRC, URSEC, RCM, NOM, SUBTEL, MTC, ENACOM, ARCOTEL |
A004800713 | 1 × R1510 Router (B Code: B048703) |
| R1510-4L ANZ + LATAM |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 4G LTE TDD: B40 3G: B1/B2/B5/B8 2G: B2/B3/B5/B8 |
CRC, URSEC, RCM, NOM, SUBTEL, MTC, ENACOM, ARCOTEL |
A004800714 |
1 × R1510 Router (B Code: B048703) 1 × DIN Rail Mounting Kit 1 × Cellular Antenna 1 × Wi-Fi Antenna 1 × Power Adapter |
| R1510-4L Japan |
4G LTE FDD: B1/B3/B8/B18/B19/B26 4G LTE TDD: B41 3G: B1/B6/B8/B19 |
Telec, JATE, NTT Docomo | A004800723 | 1 × R1510 Router (B Code: B004800718) |
| R1510-4L Japan |
4G LTE FDD: B1/B3/B8/B18/B19/B26 4G LTE TDD: B41 3G: B1/B6/B8/B19 |
Telec, JATE, NTT Docomo | A004800724 |
1 × R1510 Router (B Code: B004800718) 1 × DIN Rail Mounting Kit 1 × Cellular Antenna 1 × Wi-Fi Antenna 1 × Power Adapter |

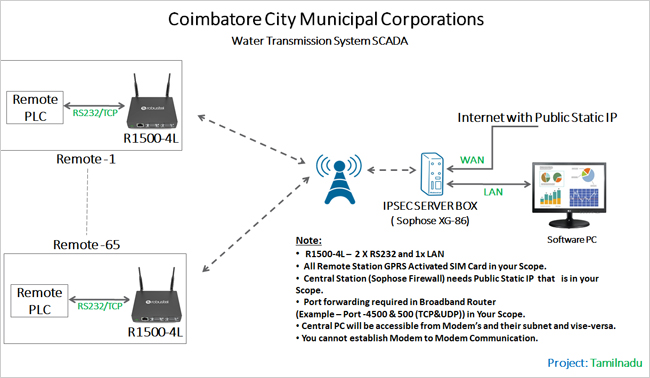

Application
Specification
System Architecture
| Operating System | RobustOS |
| CPU | MIPS, 650 MHz |
| RAM | 128MB |
| Flash | 16MB |
Cellular
| Supported Technologies | 4G/LTE, 3G, 2G |
| Antennas | 2 (MAIN + DIV) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 5 x 10/100 Mbps, 5 x LAN by default, can be configured as 1 x WAN + 4 x LAN |
| Magnet Isolation Protection | 1.5 KV |
PoE In (Optional)
| PoE Ports | WAN1 |
| PoE Standards | 802.3af & 802.3at PD |
Serial Port
| Serial Ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 4-pin 3.5 mm female socket |
| Baud Rate | 300 bps – 115200 bps |
| Signal Definition | RS-232: RXD, TXD, SGND, RTS, CTS RS-485: Data+ (A), Data- (B), Ground (GND) |
Digital Input/Output
| DI/DO Ports | 1 x DI + 1 x DO (wet contact) |
| Connector | 2 x 3-pin 3.5 mm female socket |
| Isolation | 3 KV |
| Absolute Maximum VDC | +30 V DC (DI), +30 V DC (DO) |
| Absolute Maximum ADC | 10 mA (DO) |
| Signal Definition | DI+, DI-, DO+, DO- |
Analog Input
| Analog Ports | 1 x AI (can be configured as voltage type or current type) |
| Connector | 2 x 3-pin 3.5 mm female socket |
| Voltage Input Range | 0 ~ 24 V DC |
| Current Input Range | 4 ~ 20 mA (current-type input requires external resistance, and finally measured by voltage) |
| Signal Definition | AI, AGND |
Wi-Fi
| Wi-Fi Antennas | 2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector | RP-SMA-K |
| Standards | 802.11 b/g/n, supporting AP and Client modes |
| Frequency Bands | 2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
| Security | WEP, WPA, WPA2, WPA3 |
| Encryption | 64/128 AES, TKIP |
GNSS/GPS (Optional)
| GNSS Antennas | 1 |
| Connector | SMA-K with 50 ohms impedance |
| GNSS Technology | GPS/QZSS/GOLNASS/Galileo/BeiDou |
| Tracking sensitivity | GNSS: greater than -148 dBm |
| Horizontal position accuracy | GNSS: 2.5 m |

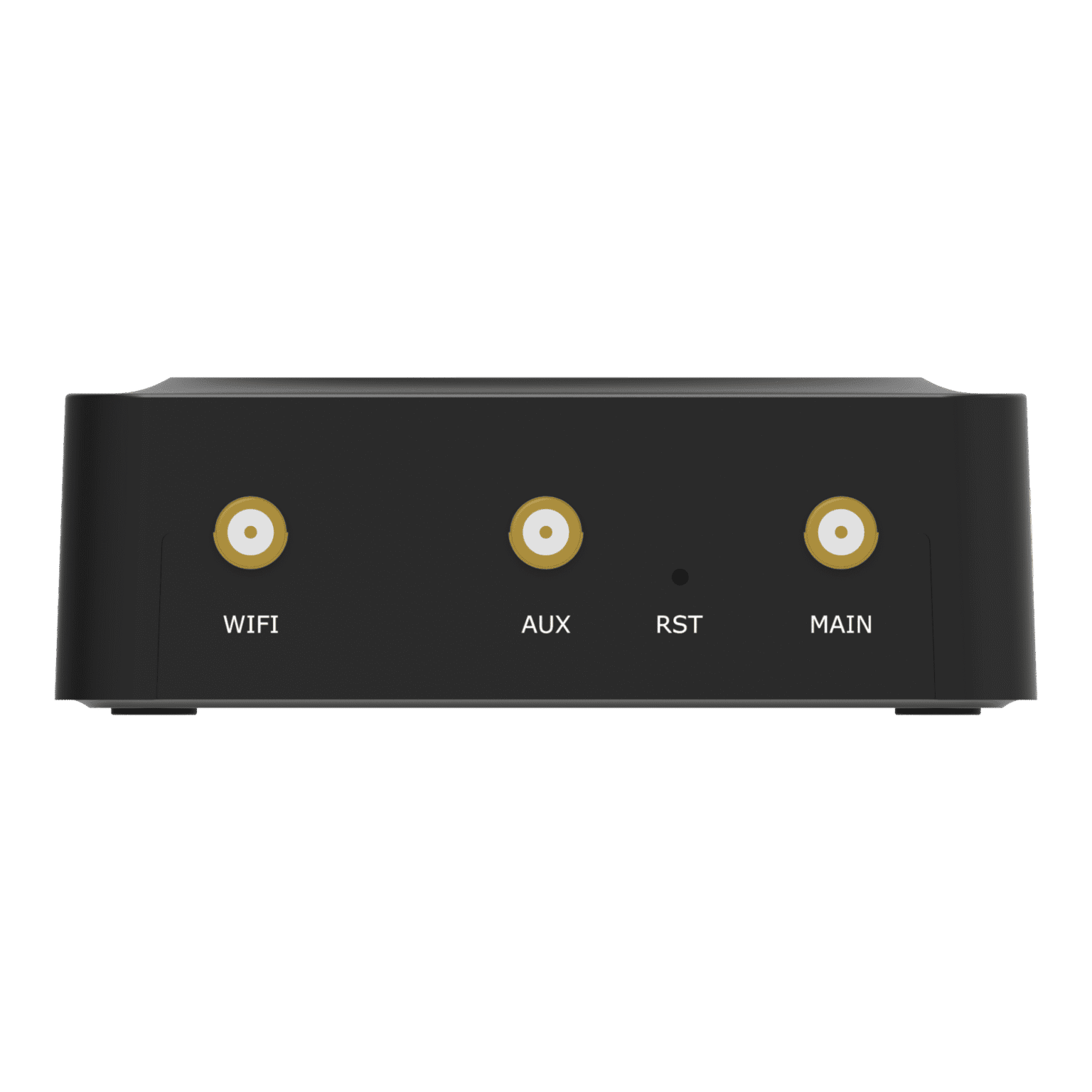

Other Interfaces
| Reset Button | 1 × RST |

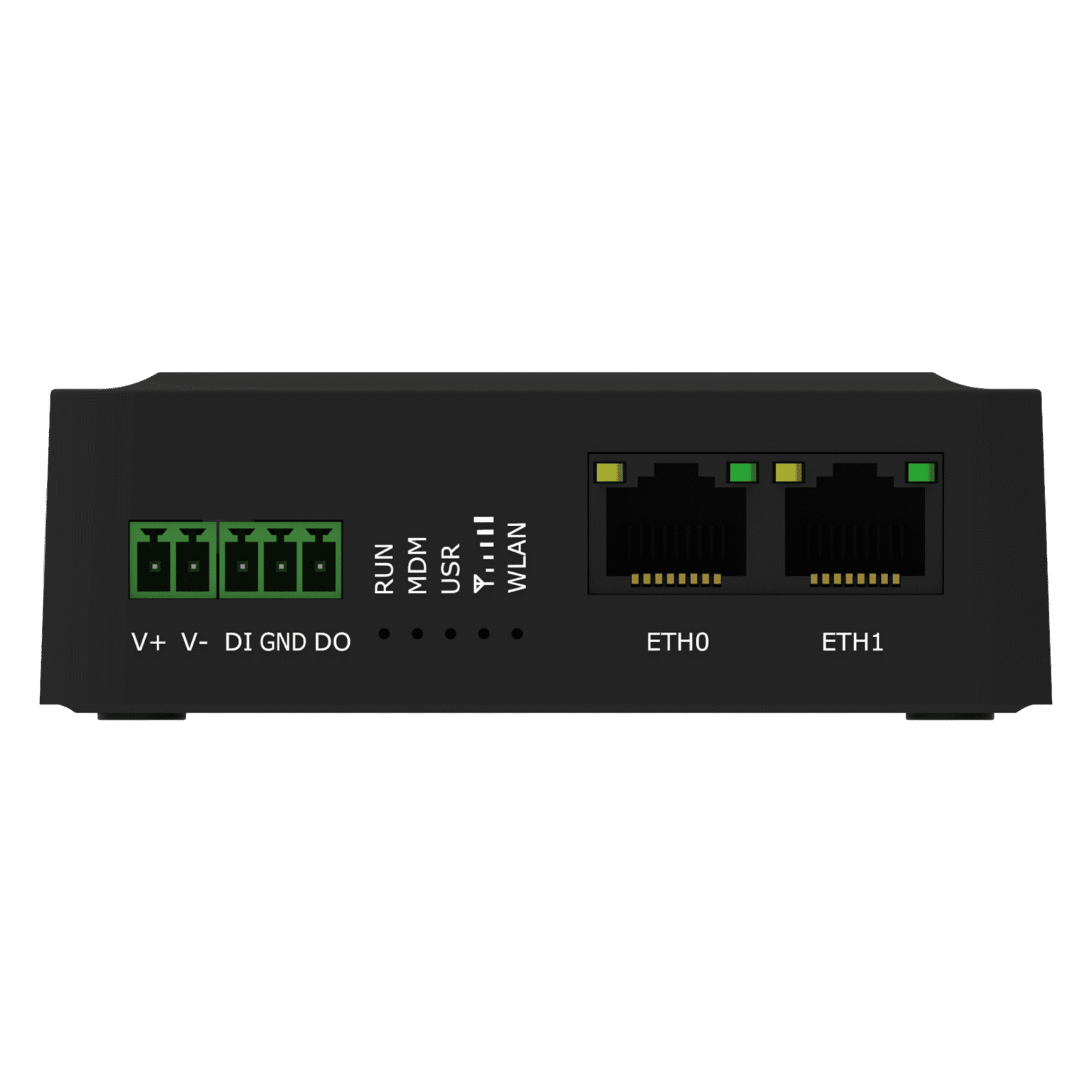

| LED Indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x WLAN, 1 x RSSI |
| Watchdog | Built-in |
Power Supply & Consumption
| PSU Connector | 2-pin 3.5mm female socket with lock |
| Input Voltage |
12/24 V DC, 9 ~ 36 V DC Reverse polarity protection, surge protection |
| Power Consumption | Idle: 1.5 W@12 V Max: 6 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Plastic, 150g |
| Dimensions | 31.5 x 91.5 x 91.5 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -25 – +70 °C |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, WireGuard |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++ |
| Flash available for SDK | 4MB |
| RAM available for SDK | 64MB |
Regulatory and Type Approvals
| Environmental | RRoHS 2.0, WEEE |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 |
