4G Industrial Router - R1312
R1312
Economical Industrial Router,
2 x Eth + 1 x SIM + 1 x RS232/RS485 + 1 x DI
The Robustel R1312 features compact size and multi-functionality. It provides stable network connectivity to devices via either 4G Cat1 or wired Ethernet.
Features
Economical, reliable device networking solution
- Durable hardware paired with the reliable RobustOS IoT gateway operating system, offering extensive software functionalities, ideal for large-scale IoT deployments.
- Built-in link management module supporting cellular, Ethernet, and Wi-Fi link backup.
- Supports ICMP detection, promptly detecting network failures and switching to backup links, significantly reducing downtime due to link failures.
- Supports real-time monitoring of device network status, device location, device traffic statistics, etc., detecting device information and promptly handling anomalies.
- Provides RobustVPN access for remote operations and maintenance of devices, enhancing efficiency for technical personnel.
Stable and reliable link maintenance mechanism
Cloud-based centralized operations and maintenance management
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The Robustel R1312 features compact size and multi-functionality. It provides stable network connectivity to devices via either 4G Cat1 or wired Ethernet.
The R1312 runs on RobustOS, a mature and stable Operating System developed in-house by Robustel. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, C++.
RCMS is Robustel’s free router monitoring service that is fully compatible with the R1312.

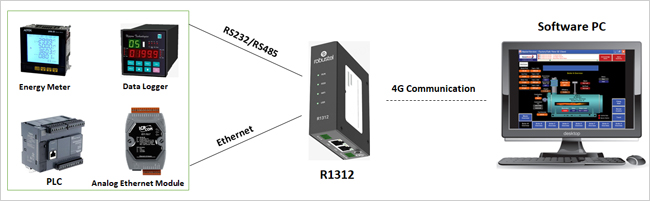

R1312 can be applied across multiple industry sectors:
- • Smart Environmental Protection: Environmental monitoring, Energy saving for wind turbines
- • Smart Healthcare: Medical Equipment
- • Smart Retail: Vending Machines, Digital Signage
Ordering Information
| Model | PN | Serial Port | Frequency Bands | Country / Region | Package Contents |
|---|---|---|---|---|---|
| R1312-4E-A-A38CN | A014500001 | RS232 |
4G LTE FDD: B1 / B3 / B5 / B8 LTE TDD: B34 / B38 / B39 / B40 / B41 |
China / India |
|
| R1312-4E-B-A38CN | A014500002 | RS485 |
Application
Specification
Hardware System
| CPU | 580MHz |
| RAM | 64MB DDR2 |
| ROM | 16MB SPI Flash |
Cellular Interface
| Number of antenna | 1 |
| Connector | SMA-K |
| SIM | 1 Nano SIM (4FF) |
| Network Standard | Cat 1 |
Ethernet Interface
| Number of ports | 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
Serial Port
| Type | 1 x RS232 or 1 x RS485 |
| Socket form | 3-pin 3.5 mm female socket |
| Baud rate | 300bps - 115200bps |
DI
| Type | 1 X DI |
| Socket form | 3-pin 3.5 mm female socket (shared with the power terminal) |
Wi-Fi Interface
| Number of antennas | 1 |
| Connector | RP-SMA-K |
| Frequency bands | 2.4 GHz |
| Standards | 802.11 b/g/n, supports AP and Client modes |
| Standards | 802.11 b/g/n, supports AP and Client modes |
| Data rate | 150Mbps Max |
| Security | WEP, WPA, WPA2, WPA3 |
| Encryption | 64/128 AES, TKIP |
Power Supply and Consumption
| Connector | 3-pin 3.5 mm female socket (shared with the DI) |
| Input Voltage | 9~36V DC |
| Power consumption | Idle: TBD mA@12 V Data link: TBD mA (peak) @12 V |
Physical Characteristics
| Ingress protection | IP30 |
| Housing & Weight | Metal, 256g |
| Dimensions | 94 x 77 x 29mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -20 ~ +70 °C |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 5 ~ 95% RH (non-considering) |
Others
| Reset button | 1 x RST |
| LED indicators | 1 x RUN, 1 x USR, 1 x RSSI, 1 x Wi-Fi |
RobustOS Network Functions
| Network protocol | Static IP, PPPoE, TCP, UDP, DHCP, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, DNS Relay, Trace, NAT, Static routing |
| Network Expansion | Link Management |
RobustOS Network Security
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/ MAC address), Port Mapping, Access Control |
| VPN tunnel | IPSec, OpenVPN, GRE, WireGuard |
| Security Management | User Management, Role Management |
RobustOS Device Management
| Remote Management | Web, CLI, SMS, RCMS |
APP Center (Available Apps for RobustOS)
| Data Reporting | RCMS, RDMS, third-party platforms supporting MQTT protocol |
| Data Reporting | RCMS, RDMS, third-party platforms supporting MQTT protocol |
| VPN | L2TP, PPTP, DMVPN |
| Wi-Fi Feature Expansion | Captive Portal |
| Network Protocols | SNMP, Dynamic Routing |
| Others | Language |
SDK
| Supported programming language | C, C++ |
| Flash available for SDK | 2 MB |
| RAM available for SDK | 8 MB |
Regulatory and Type Approvals
| Environmental | RoHS2.0 |
| EMI | EN 55032 Conducted Emission Class B EN 55032 Conducted Emission Class B |
| EMS | EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6(CS) Level 2 |
