NT-RTU-2024
NT-RTU-2024
Embedded 4G Router, 2 Ethernet + Wi-Fi + 1 SIM + 1 RS232/RS485
The NT-RTU_2024 is a fully featured embedded 4G router targeted at applications such as EV Charging, traffic signs, vending machines, medical instrumentation, industrial instrumentation and many more IOT-type applications. An embedded router solves two problems that traditional routers do not - cost and size.
The NT-RTU_2024 is a cost-effective small footprint board with Ethernet WAN, Wi-Fi WAN and 4G WAN interfaces that can all be independently configured in the powerful onboard Operating System.
Features
- Small footprint powerful 4G Modem – fully customizable in software
- Dual Ethernet, Wi-Fi (AP and client) and 4G/3G/2G capability
- RS232 (default) or RS485 port for connection to serial devices + integrated Modbus gateway
- Fully programmable Linux environment with excellent SDK Documentation
- Can be connected directly to Raspberry Pi or similar low cost embedded PC for internet access
- Bulk packaging + shipping options to minimize addition to customer BOM cost
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The NT-RTU_2024 is a fully featured embedded 4G router targeted at applications such as EV Charging, traffic signs, vending machines, medical instrumentation, industrial instrumentation and many more IOT-type applications. An embedded router solves two problems that traditional routers do not – cost and size.
The NT-RTU_2024 is a cost-effective small footprint board with Ethernet WAN, Wi-Fi WAN and 4G WAN interfaces that can all be independently configured in the powerful onboard Operating System.
NT-RTU_2024 is a Linux based router operating system that offers functionality that could take a software engineer many months to write and even more months to adequately test. Key features of NT-RTU_2024 include: VPN – innovative use of Open VPN tunneling to provide a fixed IP address on the router anywhere
RCMS – Robustel’s Cloud management platform – essential for managing an estate of routers – can be OEM branded
SMS Control – total control of the router using SMS for general status or fixing fault conditions with IP Comms
Automated failover – configure the router to automatically fail from WAN/Wi-Fi to 4G with just a few clicks
Ordering Information
| Model | R1511-4L-A02EU-B |
| PN | B061714 |
| Serial Interface | RS485 |
| LTE Category | CAT4 |
| Frequency Bands* | 4G: LTE FDD: B1/B3/B7/B8/B20/B28A 3G: WCDMA: B1/B8 2G: GSM: B3/B8 |
| Region/Country | EMEA |
| Certification | CE, UKCA |

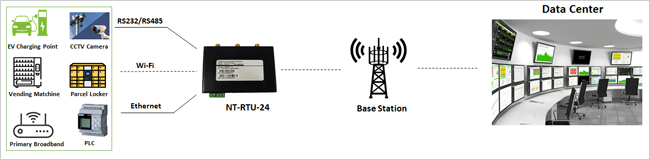

Application
Specification
Cellular Interface
| Number of antennas | 2 External antennas (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 1 Mini SIM (2FF) |
Ethernet Interface
| Number of ports Magnet isolation | 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
| Protection | 1.5 KV |
Wi-Fi Interface
| Number of antennas | 2, 1 External antenna + 1 PCB antenna |
| Connector | RP-SMA-K (External antenna) |
| Standards | 802.11b/g/n, supports AP and Client modes |
| Frequency bands | 2.4 GHz |
| Security | WEP, WPA, WPA2, WPA3 |
| Encryption | 64/128 AES, TKIP |
Serial Interface
| Type | 1 x RS232 or 1 x RS485 (Hardware configuration) |
| Connector | 3-pin 3.5 mm female socket |
| Baud rate | 300bps ~ 115200bps |
Regulatory and Type Approvals
| EMI | EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS | EN 61000-4-2 (ESD) Contact Level 2 Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 |
Others
| Reset button | 1 x RST |
| LED indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WLAN |
| Watchdog | Built-in |
Software (Basic features of OS)
| Network protocols | PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE, Wire guard |
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/ MAC address), Port Mapping, Access Control |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Remote Management | Web, CLI, SMS |
SDK
| Supported programming languages | C, C++ |
| Flash available for SDK | 4 MB |
| RAM available for SDK | 64 MB |
App Center
| Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS |
Power Supply and Consumption
| Connector | 2-pin 3.5 mm female socket |
| Input voltage | 9 ~ 36V DC |
| Power consumption | Idle: 100 mA@12 V Data link: 500 mA (peak) @12 V |
Physical Characteristics
| Weight | 165 g |
| Installations | Three screw holes are fixed ST2 x 8 black cross grooved pan head tapping |
| Operating temperature | -25 ~ +70 °C |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 5 ~ 95% RH |
